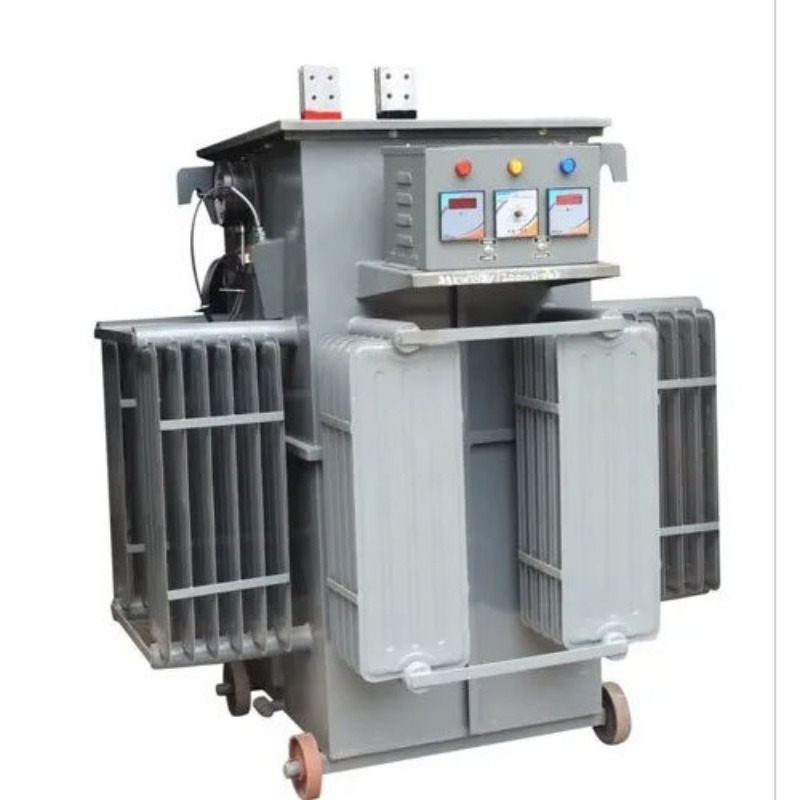

Silicon Controlled Electroplating Rectifier

Silicon Controlled Electroplating Rectifier

260000 INR/Piece

Product Details:

  • Product Type Silicon Controlled Rectifier
  • Application Industrial
  • Color Gray
  • Warranty 5 Year
  • Click to view more
X

Price And Quantity

  • 1 Piece
  • 260000 INR/Piece

Product Specifications

  • Silicon Controlled Rectifier
  • Gray
  • 5 Year
  • Industrial

Trade Information

  • Asia, Middle East, Africa
  • All India

Product Description

ELECTROPLATING, CLEANING, ETCHING, STRIPPING, BARRELLING, ANODISING, HYDROGENATION AND OTHER ELECTROCHEMICAL PROCESS

Introduction

Jindal brings you the finest products designed and engineered by the people who have been in the same field for the last 30 years. Rectifier is an economical and most efficient method of obtaining DC from AC supply. Jindal manufactures a wide range of rectifiers covering 0 to 500 Volts and upto 30000 Amps. capacity suitable for Electroplating, Anodising, Hydrogenation and many other Electrochemical processes. The entire manufacturing process is under one roof ensuring 100 Percent  quality control at  every stage of production. We believe in quality  And customers satisfaction.

Technical Specification

Capacity

30 kVA

Efficiency

82 Percent

Input Voltage

380 to 440 V

Insulation

'A' class for oil cooled

Ripple Content

Less than 5Percent

Temperature Rise

Less than 450 Degree C Above Ambient at the Top of the Oil

Country of Origin

Made in India

Warranty

5 Year

Frequency

50 Hz

Material

MS ( Body )

Brand

Jindals

Phase

Three Phase

Inner View of Rectifiers Starting Circuitry


Jindals Rectifiers are designed for 3 phase 50 Hz AC input supply and are available for operations at any voltage between 380 and 440 volts covering a wide range of voltage fluctuations It is recommended that the input to the rectifier should be connected through a proper protective device to provide positive protection to personnel and the system in the event of maintaining or in case a fault occurs


DC Output Control

The function of the variable output controls is to control the voltage or current or its operating range by varying input voltage to the main transformer primary The DC output voltage variation is achieved steplessly 0100 by means of an ON LOAD roller type Jindals make voltage regulator


Salient Feature

Jindals rectifier equipments are wound with electrolytic Prime grade italics to minimise power losses in comparison to Aluminium italic conductor used by many other manufactures Our equipments are designed liberally as per capacity and are ideally suitable for marginal over loading conductions

We use verticle Rolling contact type voltage regulator wound with heavy section of copper strips suitable for 100 continuous duty cycle for industrial applications in comparison to conventional wire wound Regulators used by other manufacturers The carbon rollers move on both sides of the winding

DIODE  Silicon diodes are tested in house similar PIV batch and same forward drop diodes are used in the equipment for equal load sharing and reducing the power losses of diodes

 LAMINATION CORE  We use imported CRGO Lamination core which have minimum power losses and results in better efficiency of equipment and saving in energy bill

PAINTS  Epoxy paint is used which is resistant to acidic environment of plating process and enhance the life of the equipment by preventing it from corrosion

METER  We use reputed make AERISHAB make DC meters only which are very accurate and durable

CONSTANT VOLTAGE CONTROLLER CVC OPTIONAL  We offer CVC Electronic attachment with rectifier equipments which will maintain constant Output Voltage or Current as per setting automaticallyirrespective of input voltage variation

SERVICING  JINDALS have maintained enviable reputation in market in after sales services This fact can be varified from any of our customers

Guarantee

Our Equipments are Guaranteed Unconditionally for 1 Year against any Manufacturing Defect We Shall not charge anything for Installation Servicing and Spares During the Guarantee Period


    Roller Type Regulator Thyristorised Control
    1.No wave form distortion at any load. Electrical wave form is like a moving wheel. For 50% Rated Voltage the Dia of wheel is reduced accordingly i.e. magnitude for a wave is decreased. 1.Wave form distortion. It is like cutting the wheel by 50 Percent  and then moving the wheel i.e. wave form is cut as shown at full magnitude.
    2.Higher power factor of more than 0.95 is achieved. 2.The power factor is lower between 0.5 to 0.9
    3.The system is simple and can be repaired and maintained even by simple mechanic. 3.The system is specified and needs specially trained Electronic Engineer to repair and maintain.
    4. The cost of spares is very negligible. 4. The cost of replacement is very high.
    5. Over all losses are less. 5. Over all losses are more

WHY THE REGULATOR CONTROL IS SUPERIOR TO THYRISTORISED CONTROL IN RECTIFIER

  • In plating application the regulator is better and technology is adopted in Germany and Europe because of as explained above in point 1 to 5
  • Other manufacturer of rectifiers have shifted to thyristors because they have to use sliding carbon brush type regulators
  • Manufacturers of rectifiers claim that thyristor controlled rectifiers has been losses than regulator They compare thyristor with sliding carbon type regulator In our case their claim is not true We use vertical coil type rolling carbon regulator The copper section is three times so the losses are almost 16 or 20
  • In our regulator the roller move on both sides of the coil to give  440V or 254V output We design the rectifier in Q connection in which the regulator current is half the line current so losses are less and life is much more
